CEC Thermal Flasher #TF552/536
| Part # | TF552/536 | |||||
|---|---|---|---|---|---|---|
| Description | 12V 12A 2PIN THERMAL FLASHER | |||||
| Type | Thermal Flasher | |||||
| Typical Load | SAE No. 1156 2.10A at 12.8 Volts 2 to 6 Lamps SAE No. 1895 0.27A at 14 Volts 1 to 6 Lamps In Any Combination | |||||
| Specifications | FMVSS108, SAE J590b & J945 | |||||
| Terminals | 2 | Rated Load Range | 0.27 Amps to 14 Amps | Flash Rate | 60 to 120 Flash Per Minute | |
| Style | Round Aluminum | Rated Voltage | 11 to 15 Volts D.C. | Lamps Turn | 2 to 3 | |
| Pilot Circuit | No | Wattage | 100W | Life Hours | 40 Hours | |

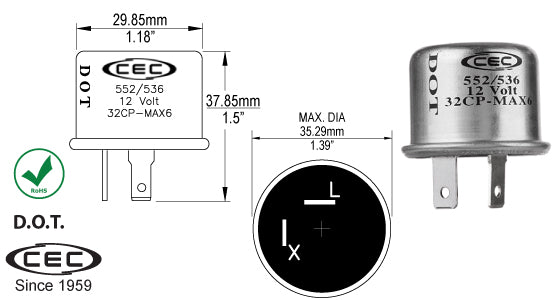

| Drawing Details | New Announcement | |||||
† MOL (Maximum Overall Length):The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
UPC: 014271026133
