CEC Thermal Flasher #TF535
| Part # | TF535 | |||||
|---|---|---|---|---|---|---|
| Description | 6V 12A 3PIN THERMAL FLASHER | |||||
| Type | Combination TS & Hazard Thermal Flasher | |||||
| Typical Load | SAE No. 1129 2.63 Amps at 6.4 Volts SAE No. 55 0.41 Amps at 7 Volts 2 to 6 Lamps No. 1129 or 1 to 2 Lamps No. 55 | |||||
| Specifications | FMVSS108, SAE J590b & J945 | |||||
| Terminals | 3 | Rated Load Range | 0.41 Ampts to 13 Amps | Flash Rate | 60 to 120 Flash Per Minute | |
| Style | Round Aluminum | Rated Voltage | 5 to 7 Volts D.C. | Lamps Turn | 2 to 3 | |
| Pilot Circuit | Yes | Wattage | 50W | Life Hours | 40 Hours | |

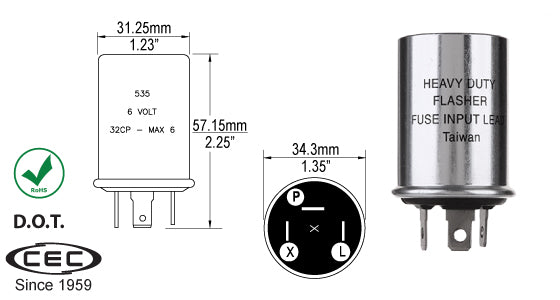

| Drawing Details | New Announcement | |||||
† MOL (Maximum Overall Length):The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
UPC: 014271039195
