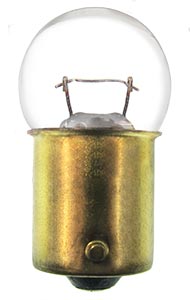

CEC Miniature Lamp #63, Box of 10
| Part # | 63 | |||||
|---|---|---|---|---|---|---|
| Description | G-6 S.C. BA15s 7V .63A 3CP | |||||
| Bulb Shape | G-6 | Filament | C-6 | Base Style | S.C. Bayonet (BA15s) | |
| Glass Diameter (in) | 0.75 | MOL† (in) | 1.440 | LCL†† (in) | 0.75 | |
| Glass Diameter (mm) | 19.05 | MOL (mm) | 36.58 | LCL (mm) | 19.05 | |
| Volts | 7 | MSCP ‡ | 3 | Avg Life Hrs | 1000 | |
| Watts | 4.41 | Amps | 0.63 | RoHS Compliant | Yes | |
| E-Marked | No | Drawing |  63.pdf |
New Announcement | ||
† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
UPC: 014271020483
