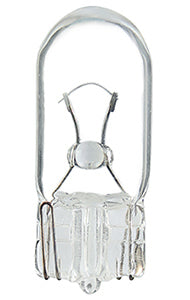

CEC Miniature Lamp #555, Box of 10

We are an authorized online retailer of the CEC Industries branded products.

$ 7.82
Unit price per

Shipping calculated at checkout.

Part #	555
Description	T3 1/4 WEDGE 6.3V .25A .9CP
Bulb Shape	T-3 1/4	Filament	C-2R	Base Style	Wedge (T-3 1/4)
Glass Diameter (in)	0.406	MOL^† (in)	1.060	LCL^†† (in)	0.65
Glass Diameter (mm)	10.3	MOL (mm)	26.80	LCL (mm)	16.50
Volts	6.3	MSCP ^‡	0.9	Avg Life Hrs	3000
Watts	1.575	Amps	0.25	RoHS Compliant	Yes
E-Marked	No	Drawing		New Announcement

† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271021527
