Part # 316

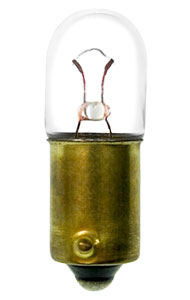

Description T3 1/4 Min BA9s 6V .7A 3.4CP
Bulb Shape T-3 1/4 Filament C-2R Base Style Miniature Bayonet (BA9s)
Glass Diameter (in) 0.39 MOL (in) 1.190 LCL†† (in) 0.63
Glass Diameter (mm) 10 MOL (mm) 30.20 LCL (mm) 16.00
Volts 6 MSCP  3.4 Avg Life Hrs 500
Watts 4.2 Amps 0.70 RoHS Compliant
E-Marked No Drawing New Announcement

† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
