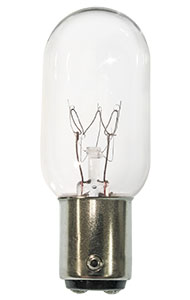

CEC Miniature Lamp #25T8DC-130V, Box of 10

CEC Miniature Lamp #25T8DC-130V, Box of 10

We are an authorized online retailer of the CEC Industries branded products.

  • $ 11.67
    Unit price per
Shipping calculated at checkout.


Only 28 left!

Part # 25T8DC-130V
Description T8 DC BAY 130V 25W
Bulb Shape T-8 Filament C-7A Base Style D.C. Bayonet (BA15d)
Glass Diameter (in) 0.98 MOL (in) 2.630 LCL†† (in) 1.31
Glass Diameter (mm) 25 MOL (mm) 66.70 LCL (mm) 33.30
Volts 130 MSCP  0 Avg Life Hrs 200
Watts 25 Amps 0.19 RoHS Compliant Yes
E-Marked No Drawing New Announcement

† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271024160
