CEC Miniature Lamp #259, Box of 10 - AutoCareParts.com

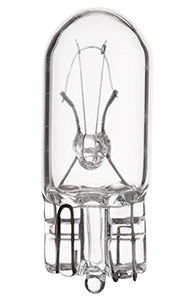

CEC Miniature Lamp #259, Box of 10

We are an authorized online retailer of the CEC Industries branded products.

Shipping calculated at checkout.

Only 0 left!
Will be in stock after
​​
Part # 259
Description T3 1/4 WEDGE 6.3V .25A .65CP
Bulb Shape T-3 1/4 Filament C-2F Base Style Wedge (T-3 1/4)
Glass Diameter (in) 0.406 MOL† (in) 1.06 LCL†† (in) 0.65
Glass Diameter (mm) 10.3 MOL (mm) 26.80 LCL (mm) 16.50
Volts 6.3 MSCP ‡ 0.65 Avg Life Hrs 5000
Watts 1.575 Amps 0.25 RoHS Compliant Yes
E-Marked No Drawing New Announcement
† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271021077
