CEC Miniature Lamp #1864, Box of 10

CEC Miniature Lamp #1864, Box of 10

We are an authorized online retailer of the CEC Industries branded products.

  • $ 10.00
    Unit price per
Shipping calculated at checkout.

Only 10 left!

Part # 1864

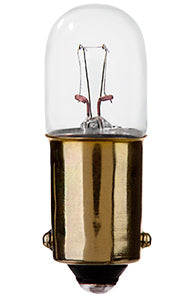

Description T3 1/4 M BAY 28V .17A 3CP
Bulb Shape T-3 1/4 Filament C-2F Base Style Miniature Bayonet (BA9s)
Glass Diameter (in) 0.39 MOL (in) 1.190 LCL†† (in) 0.63
Glass Diameter (mm) 10 MOL (mm) 30.20 LCL (mm) 16.00
Volts 28 MSCP  3 Avg Life Hrs 1500
Watts 4.76 Amps 0.17 RoHS Compliant
E-Marked No Drawing 1864.pdf New Announcement

† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271022814
