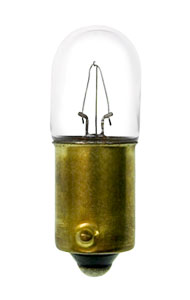

CEC Miniature Lamp #1815, Box of 10

Part #	1815
Description	T3 1/4 M BAY 14V .2A 1.4CP
Bulb Shape	T-3 1/4	Filament	C-2V	Base Style	Miniature Bayonet (BA9s)
Glass Diameter (in)	0.39	MOL† (in)	1.19	LCL†† (in)	0.75
Glass Diameter (mm)	10	MOL (mm)	30.20	LCL (mm)	19.10
Volts	14	MSCP ‡	1.4	Avg Life Hrs	3000
Watts	2.8	Amps	0.20	RoHS Compliant
E-Marked	No	Drawing		New Announcement

† MOL (Maximum Overall Length):

The overall length of a lamp, from the top of the shell to the bottom of the base.

‡ MSCP (Mean Spherical Candlepower):

Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.

†† LCL (Light Center Lenght):

The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271022692
