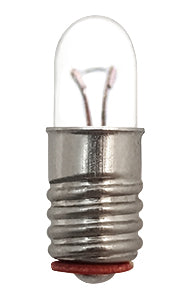

CEC Miniature Lamp #1768, Box of 10

CEC Miniature Lamp #1768, Box of 10

We are an authorized online retailer of the CEC Industries branded products.

  • $ 8.51
    Unit price per
Shipping calculated at checkout.

Only 1 left!

Part # 1768
Description T1 3/4 MS 6V .2A .6CP
Bulb Shape T-1 3/4 Filament C-2R Base Style Midget Screw (E5)
Glass Diameter (in) 0.22 MOL (in) 0.630 LCL†† (in) 0.52
Glass Diameter (mm) 5.5 MOL (mm) 16.00 LCL (mm) 13.20
Volts 6 MSCP  0.6 Avg Life Hrs 1000
Watts 1.2 Amps 0.20 RoHS Compliant
E-Marked No Drawing 1768.pdf New Announcement

† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271029721
