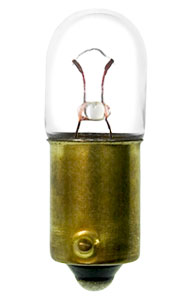

CEC Miniature Lamp #1490, Box of 10
We are an authorized online retailer of the CEC Industries branded products.
-
|
| Part # |
1490 |
| Description |
T3 1/4 M BAY 3.2V.16A .2CP |
| Bulb Shape |
T-3 1/4 |
Filament |
C-2R |
Base Style |
Miniature Bayonet (BA9s) |
| Glass Diameter (in) |
0.39 |
MOL† (in) |
1.19 |
LCL†† (in) |
0.78 |
| Glass Diameter (mm) |
10 |
MOL (mm) |
30.20 |
LCL (mm) |
19.80 |
| Volts |
3.2 |
MSCP ‡
|
0.2 |
Avg Life Hrs |
3000 |
| Watts |
0.512 |
Amps |
0.16 |
RoHS Compliant |
|
| E-Marked |
No |
Drawing |
|
New Announcement
|
- † MOL (Maximum Overall Length):
- The overall length of a lamp, from the top of the shell to the bottom of the base.
- ‡ MSCP (Mean Spherical Candlepower):
- Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
- †† LCL (Light Center Lenght):
- The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
