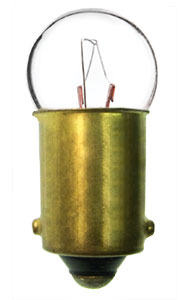

CEC Miniature Lamp #1445, Box of 10
|Description||G3 1/2 M BAY 14.0V .135A .7CP|
|Bulb Shape||G-3 1/2||Filament||C-2V||Base Style||Miniature Bayonet (BA9s)|
|Glass Diameter (in)||0.46||MOL† (in)||0.940||LCL†† (in)||0.50|
|Glass Diameter (mm)||11.7||MOL (mm)||23.90||LCL (mm)||12.70|
|Volts||14.4||MSCP ‡||0.7||Avg Life Hrs||2000|
† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
