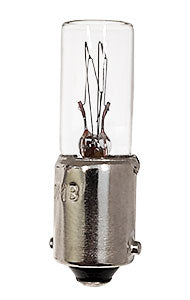

CEC Miniature Lamp #120MB6, Box of 10

We are an authorized online retailer of the CEC Industries branded products.

$ 11.61
Unit price per

Shipping calculated at checkout.

Part #	120MB6
Description	T2 1/2 M BAY 120.0V .052A
Bulb Shape	T-2 1/2	Filament	CC-7A	Base Style	Miniature Bayonet (BA9s)
Glass Diameter (in)	0.31	MOL^† (in)	1.190	LCL^†† (in)	0.95
Glass Diameter (mm)	7.9	MOL (mm)	30.20	LCL (mm)	24.20
Volts	120	MSCP ^‡	1.43	Avg Life Hrs	3000
Watts	6.24	Amps	0.05	RoHS Compliant
E-Marked	No	Drawing		New Announcement

† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271031946
