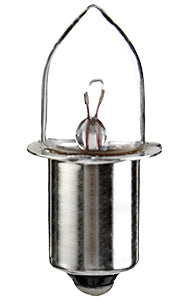

CEC Miniature Lamp #PR2, Box of 10

We are an authorized online retailer of the CEC Industries branded products.

$ 8.99
Unit price per

Shipping calculated at checkout.

Quantity

Only 0 left!

Will be in stock after

Part #	PR2
Description	PR BULB 2.38V .5A .80CP
Bulb Shape	B-3 1/2	Filament	C-2R	Base Style	S.C. Miniature Flanged
Glass Diameter (in)	0.43	MOL^† (in)	1.25	LCL^†† (in)	0.25
Glass Diameter (mm)	11	MOL (mm)	31.75	LCL (mm)	6.35
Volts	2.38	MSCP ^‡	0.8	Avg Life Hrs	15
Watts	1.19	Amps	0.50	RoHS Compliant
E-Marked	No	Drawing		New Announcement

† MOL (Maximum Overall Length):The overall length of a lamp, from the top of the shell to the bottom of the base.

‡ MSCP (Mean Spherical Candlepower):Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.

†† LCL (Light Center Lenght):The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271020018
