CEC Miniature Lamp #PR1, Box of 10

We are an authorized online retailer of the CEC Industries branded products.

  • $ 9.99
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

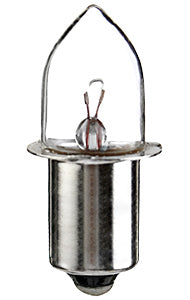

Part # PR1
Description PR BULB 2V .95A
Bulb Shape B-3 1/2 Filament C-2R Base Style S.C. Miniature Flanged
Glass Diameter (in) 0.43 MOL (in) 1.25 LCL†† (in) 0.25
Glass Diameter (mm) 11 MOL (mm) 31.75 LCL (mm) 6.35
Volts 2 MSCP  1 Avg Life Hrs 40
Watts 1.9 Amps 0.95 RoHS Compliant
E-Marked No Drawing New Announcement


† MOL (Maximum Overall Length):The overall length of a lamp, from the top of the shell to the bottom of the base.

‡ MSCP (Mean Spherical Candlepower):Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.

†† LCL (Light Center Lenght):The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271037924
