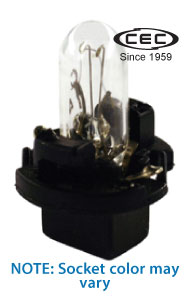

CEC Miniature Lamp #PC74, Box of 10

We are an authorized online retailer of the CEC Industries branded products.

$ 12.99
Unit price per

Shipping calculated at checkout.

Part #	PC74
Description	74 WITH PC SOCKET
Bulb Shape	T-1 3/4	Filament	C-2F	Base Style	T1 3/4 Socket
Glass Diameter (in)	0.22	MOL^† (in)	0.84	LCL^†† (in)	0.45
Glass Diameter (mm)	5.5	MOL (mm)	21.39	LCL (mm)	11.43
Volts	14	MSCP ^‡	0.7	Avg Life Hrs	500
Watts	1.4	Amps	0.10	RoHS Compliant
E-Marked	No	Drawing		New Announcement

† MOL (Maximum Overall Length):The overall length of a lamp, from the top of the shell to the bottom of the base.

‡ MSCP (Mean Spherical Candlepower):Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.

†† LCL (Light Center Lenght):The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271028847
