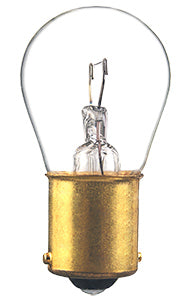

CEC Miniature Lamp #93, Box of 10
|Description||S-8 S.C. BA15s 12.8V 1.04A 15CP|
|Bulb Shape||S-8||Filament||C-6||Base Style||S.C. Bayonet (BA15s)|
|Glass Diameter (in)||1.04||MOL† (in)||2.00||LCL†† (in)||1.25|
|Glass Diameter (mm)||26.5||MOL (mm)||50.80||LCL (mm)||31.75|
|Volts||12.8||MSCP ‡||15||Avg Life Hrs||700|
† MOL (Maximum Overall Length):The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
