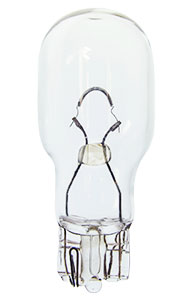

CEC Miniature Lamp #921 (W16W), Box of 10
|Part #||921 (W16W)|
|Description||T-5 WEDGE (W2.1X9.5d) 12.8V 1.4A 21CP (W16W)|
|Bulb Shape||T-5||Filament||C-2R||Base Style||Wedge (T-5)|
|Glass Diameter (in)||0.625||MOL† (in)||1.49||LCL†† (in)||0.81|
|Glass Diameter (mm)||15.875||MOL (mm)||37.80||LCL (mm)||20.60|
|Volts||12.8||MSCP ‡||21||Avg Life Hrs||1000|
† MOL (Maximum Overall Length):The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
