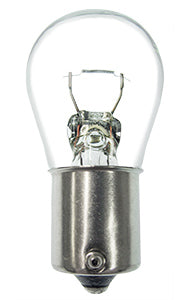

CEC Miniature Lamp #7506, Box of 10
Shipping calculated at checkout.
Part # 7506 (P21W) Description S-8 S.C. BA15s 12V 1.75A 37CP (P21W) Bulb Shape S-8 Filament C-6 Base Style S.C. Bayonet (BA15s) Glass Diameter (in) 1.04 MOL† (in) 2.000 LCL†† (in) 1.25 Glass Diameter (mm) 26.5 MOL (mm) 52.80 LCL (mm) 31.75 Volts 12 MSCP ‡ 36.6 Avg Life Hrs 150 Watts 21 Amps 1.75 RoHS Compliant Yes E-Marked Yes Drawing 7506.pdf New Announcement
- † MOL (Maximum Overall Length):
- The overall length of a lamp, from the top of the shell to the bottom of the base.
- ‡ MSCP (Mean Spherical Candlepower):
- Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
- †† LCL (Light Center Lenght):
- The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
