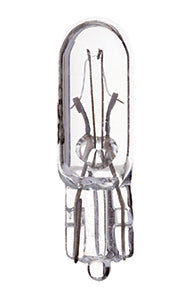

CEC Miniature Lamp #74, Box of 10
| Part # | 74 | |||||
|---|---|---|---|---|---|---|
| Description | T-1 3/4 WEDGE (W2.1X4.9d ) 14V .10A .7CP | |||||
| Bulb Shape | T-1 3/4 | Filament | C-2F | Base Style | Wedge (T-1 3/4) | |
| Glass Diameter (in) | 0.218 | MOL† (in) | 0.80 | LCL†† (in) | 0.40 | |
| Glass Diameter (mm) | 5.5 | MOL (mm) | 20.30 | LCL (mm) | 10.20 | |
| Volts | 14 | MSCP ‡ | 0.7 | Avg Life Hrs | 500 | |
| Watts | 1.4 | Amps | 0.10 | RoHS Compliant | Yes | |
| E-Marked | No | Drawing | New Announcement | |||
† MOL (Maximum Overall Length):The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
UPC:
