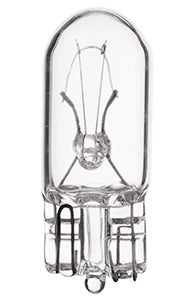

CEC Miniature Lamp #658, Box of 10

We are an authorized online retailer of the CEC Industries branded products.

  • $ 6.99
    Unit price per
Shipping calculated at checkout.

Only 15 left!

Part # 658
Description T3 1/4 WEDGE 14V .08A .31CP
Bulb Shape T-3 1/4 Filament C-2F Base Style Wedge (T-3 1/4)
Glass Diameter (in) 0.406 MOL (in) 1.06 LCL†† (in) 0.56
Glass Diameter (mm) 10.3 MOL (mm) 26.80 LCL (mm) 14.20
Volts 14 MSCP  0.31 Avg Life Hrs 15000
Watts 1.12 Amps 0.08 RoHS Compliant Yes
E-Marked No Drawing New Announcement

​​

† MOL (Maximum Overall Length):

The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271021640
