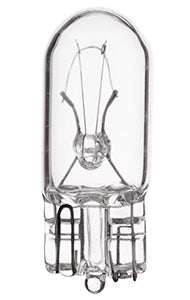

CEC Miniature Lamp #655, Box of 10
| Part # | 655 | |||||
|---|---|---|---|---|---|---|
| Description | T3 1/4 WEDGE 28V .2A 3CP | |||||
| Bulb Shape | T-3 1/4 | Filament | C-2F | Base Style | Wedge (T-3 1/4) | |
| Glass Diameter (in) | 0.406 | MOL† (in) | 1.060 | LCL†† (in) | 0.56 | |
| Glass Diameter (mm) | 10.3 | MOL (mm) | 26.80 | LCL (mm) | 14.20 | |
| Volts | 28 | MSCP ‡ | 3 | Avg Life Hrs | 7000 | |
| Watts | 5.6 | Amps | 0.20 | RoHS Compliant | Yes | |
| E-Marked | No | Drawing |  655.pdf |
New Announcement | ||
† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
UPC: 014271021619
