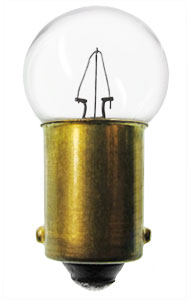

CEC Miniature Lamp #57, Box of 10
| Part # | 57 | |||||
|---|---|---|---|---|---|---|
| Description | G-4 1/2 BA9s 14V .24A 2CP | |||||
| Bulb Shape | G-4 1/2 | Filament | C-2V | Base Style | Miniature Bayonet (BA9s) | |
| Glass Diameter (in) | 0.59 | MOL† (in) | 1.07 | LCL†† (in) | 0.56 | |
| Glass Diameter (mm) | 15 | MOL (mm) | 26.92 | LCL (mm) | 14.20 | |
| Volts | 14 | MSCP ‡ | 2 | Avg Life Hrs | 500 | |
| Watts | 3.36 | Amps | 0.24 | RoHS Compliant | YES | |
| E-Marked | No | Drawing | New Announcement | |||
- † MOL (Maximum Overall Length):
- The overall length of a lamp, from the top of the shell to the bottom of the base.
- ‡ MSCP (Mean Spherical Candlepower):
- Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
- †† LCL (Light Center Lenght):
- The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
