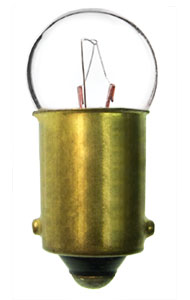

CEC Miniature Lamp #53, Box of 10
| Part # | 53 | |||||
|---|---|---|---|---|---|---|
| Description | G-3 1/2 BA9s 14.4V .12A 1CP | |||||
| Bulb Shape | G-3 1/2 | Filament | C-2V | Base Style | Miniature Bayonet (BA9s) | |
| Glass Diameter (in) | 0.43 | MOL† (in) | 0.94 | LCL†† (in) | 0.50 | |
| Glass Diameter (mm) | 11.0 | MOL (mm) | 23.90 | LCL (mm) | 12.70 | |
| Volts | 14.4 | MSCP ‡ | 1 | Avg Life Hrs | 1000 | |
| Watts | 1.728 | Amps | 0.12 | RoHS Compliant | YES | |
| E-Marked | No | Drawing | New Announcement | |||
- † MOL (Maximum Overall Length):
- The overall length of a lamp, from the top of the shell to the bottom of the base.
- ‡ MSCP (Mean Spherical Candlepower):
- Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
- †† LCL (Light Center Lenght):
- The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
UPC: 014271021008
