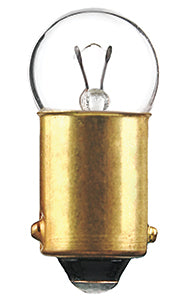

CEC Miniature Lamp #51, Box of 10

We are an authorized online retailer of the CEC Industries branded products.

  • $ 9.99
    Unit price per
Shipping calculated at checkout.


Only 0 left!
Will be in stock after

​​
Part # 51
Description G-3 1/2 BA9s 7.5V .22A 1CP
Bulb Shape G-3 1/2 Filament C-2R Base Style Miniature Bayonet (BA9s)
Glass Diameter (in) 0.46 MOL (in) 0.94 LCL†† (in) 0.50
Glass Diameter (mm) 11.7 MOL (mm) 23.90 LCL (mm) 12.70
Volts 7.5 MSCP  1 Avg Life Hrs 1000
Watts 1.65 Amps 0.22 RoHS Compliant
E-Marked No Drawing New Announcement
† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271020445
