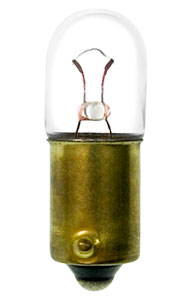

CEC Miniature Lamp #49, Box of 10

We are an authorized online retailer of the CEC Industries branded products.

$ 8.04
Unit price per

Shipping calculated at checkout.

Part #	49
Description	T3 1/4 Min BA9s 2V .06A .04CP
Bulb Shape	T-3 1/4	Filament	S-2	Base Style	Miniature Bayonet (BA9s)
Glass Diameter (in)	0.39	MOL^† (in)	1.190	LCL^†† (in)	0.78
Glass Diameter (mm)	10	MOL (mm)	30.23	LCL (mm)	19.80
Volts	2	MSCP ^‡	0.04	Avg Life Hrs	1000
Watts	0.12	Amps	0.06	RoHS Compliant
E-Marked	No	Drawing		New Announcement

† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271025099
