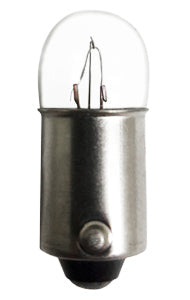

CEC Miniature Lamp #3894, Box of 10

CEC Miniature Lamp #3894, Box of 10

We are an authorized online retailer of the CEC Industries branded products.

  • $ 8.26
    Unit price per
Shipping calculated at checkout.

Only 1 left!

Part # 3894
Description T2 3/4 BA9s 12V 3W .25A
Bulb Shape T-2 3/4 Filament C-2V Base Style Miniature Bayonet (BA9s)
Glass Diameter (in) 0.35 MOL (in) 0.940 LCL†† (in) 0.51
Glass Diameter (mm) 8.8 MOL (mm) 23.90 LCL (mm) 13.00
Volts 12 MSCP  1.75 Avg Life Hrs 200
Watts 3 Amps 0.25 RoHS Compliant
E-Marked No Drawing New Announcement

† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271030031
