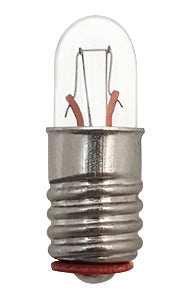

CEC Miniature Lamp #373, Box of 10
| Part # | 373 | |||||
|---|---|---|---|---|---|---|
| Description | T1 3/4 MS 14V .08A .5CP | |||||
| Bulb Shape | T-1 3/4 | Filament | C-2F | Base Style | Midget Screw (E5) | |
| Glass Diameter (in) | 0.22 | MOL† (in) | 0.720 | LCL†† (in) | 0.52 | |
| Glass Diameter (mm) | 5.5 | MOL (mm) | 18.30 | LCL (mm) | 13.20 | |
| Volts | 14 | MSCP ‡ | 0.5 | Avg Life Hrs | 2500 | |
| Watts | 1.12 | Amps | 0.08 | RoHS Compliant | ||
| E-Marked | No | Drawing |  373.pdf |
New Announcement | ||
† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
UPC: 014271029042
