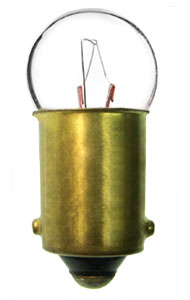

CEC Miniature Lamp #363, Box of 10

CEC Miniature Lamp #363, Box of 10

We are an authorized online retailer of the CEC Industries branded products.

  • $ 9.98
    Unit price per
Shipping calculated at checkout.

Only 2 left!

Part # 363
Description G3 1/2 Min BA9s 14V 0.2A 2.0CP
Bulb Shape G-3 1/2 Filament C-2V Base Style Miniature Bayonet (BA9s)
Glass Diameter (in) 0.46 MOL (in) 0.940 LCL†† (in) 0.50
Glass Diameter (mm) 11.7 MOL (mm) 23.88 LCL (mm) 12.70
Volts 14 MSCP  2 Avg Life Hrs 250
Watts 2.8 Amps 0.20 RoHS Compliant
E-Marked No Drawing New Announcement

† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271025761
