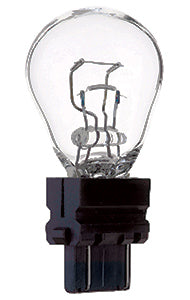

CEC Miniature Lamp #3157 (P27/7W), Box of 10
| Part # | 3157 (P27/7W) | |||||
|---|---|---|---|---|---|---|
| Description | S-8 D.F. WEDGE (W2.5X16q)12.8/ 14V 2.10/ .59A 32/3CP(P27/7W) | |||||
| Bulb Shape | S-8 | Filament | C-6/C-6 | Base Style | D.F. Plastic Wedge | |
| Glass Diameter (in) | 1.04 | MOL† (in) | 2.09 | LCL†† (in) | 1.10 | |
| Glass Diameter (mm) | 26.5 | MOL (mm) | 53.00 | LCL (mm) | 27.90 | |
| Volts | 12.8/14 | MSCP ‡ | 32/3 | Avg Life Hrs | 1200/5000 | |
| Watts | 26.88/8.26 | Amps | 2.1/0.59 | RoHS Compliant | Yes | |
| E-Marked | Yes | Drawing | New Announcement | |||
- † MOL (Maximum Overall Length):
- The overall length of a lamp, from the top of the shell to the bottom of the base.
- ‡ MSCP (Mean Spherical Candlepower):
- Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
- †† LCL (Light Center Lenght):
- The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
UPC: 014271023095
