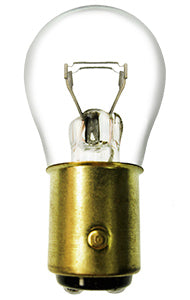

CEC Miniature Lamp #2357, Box of 10
|Description||S8 DC INDEX BAY15d 12.8/14V 2.2/0.59A 40/3CP|
|Bulb Shape||S-8||Filament||C-6/C-6||Base Style||D.C. Index (BAY15d)|
|Glass Diameter (in)||1.04||MOL† (in)||2.000||LCL†† (in)||1.25|
|Glass Diameter (mm)||26.5||MOL (mm)||50.80||LCL (mm)||31.80|
|Volts||12.8/14||MSCP ‡||40/3||Avg Life Hrs||400/5000|
† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
