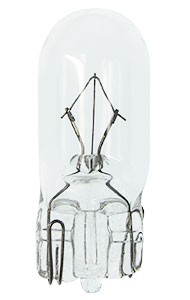

CEC Miniature Lamp #192, Box of 10

CEC Miniature Lamp #192, Box of 10

We are an authorized online retailer of the CEC Industries branded products.

  • $ 6.01
    Unit price per
Shipping calculated at checkout.

Only 2 left!

Part # 192
Description T-3 1/4 WEDGE 13V .33A 3CP
Bulb Shape T-3 1/4 Filament C-2V Base Style Wedge (T-3 1/4)
Glass Diameter (in) 0.406 MOL (in) 1.060 LCL†† (in) 0.56
Glass Diameter (mm) 10.3 MOL (mm) 26.80 LCL (mm) 14.20
Volts 13 MSCP  3 Avg Life Hrs 1000
Watts 4.29 Amps 0.33 RoHS Compliant Yes
E-Marked No Drawing New Announcement

† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271020810
