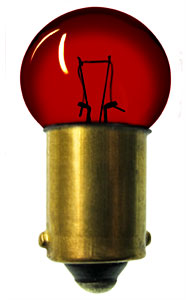

CEC Miniature Lamp #1895R, Box of 10
| Part # | 1895R | |||||
|---|---|---|---|---|---|---|
| Description | G4 1/2 Min BA9s 14V .27A 2CP RED | |||||
| Bulb Shape | G-4 1/2 | Filament | C-2F | Base Style | Miniature Bayonet (BA9s) | |
| Glass Diameter (in) | 0.59 | MOL† (in) | 1.070 | LCL†† (in) | 0.56 | |
| Glass Diameter (mm) | 15 | MOL (mm) | 26.92 | LCL (mm) | 14.20 | |
| Volts | 14 | MSCP ‡ | 2 | Avg Life Hrs | 2000 | |
| Watts | 3.78 | Amps | 0.27 | RoHS Compliant | ||
| E-Marked | No | Drawing |  1895R.pdf |
New Announcement | ||
† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
UPC: 014271022913
