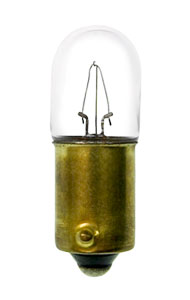

CEC Miniature Lamp #1816, Box of 10
| Part # | 1816 | |||||
|---|---|---|---|---|---|---|
| Description | T3 1/4 M BAY 13V .33A 3CP | |||||
| Bulb Shape | T-3 1/4 | Filament | C-2V | Base Style | Miniature Bayonet (BA9s) | |
| Glass Diameter (in) | 0.39 | MOL† (in) | 1.190 | LCL†† (in) | 0.63 | |
| Glass Diameter (mm) | 10 | MOL (mm) | 30.20 | LCL (mm) | 16.00 | |
| Volts | 13 | MSCP ‡ | 3 | Avg Life Hrs | 1000 | |
| Watts | 4.29 | Amps | 0.33 | RoHS Compliant | ||
| E-Marked | No | Drawing |  1816.pdf |
New Announcement | ||
† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
UPC: 014271022708
