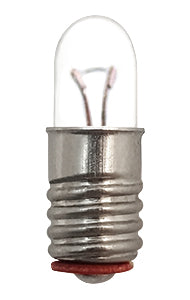

CEC Miniature Lamp #1769, Box of 10

We are an authorized online retailer of the CEC Industries branded products.

$ 7.88
Unit price per

Shipping calculated at checkout.

Part #	1769
Description	T1 3/4 MS 2.5V .2A .2CP
Bulb Shape	T-1 3/4	Filament	C-2R	Base Style	Midget Screw (E5)
Glass Diameter (in)	0.22	MOL^† (in)	0.720	LCL^†† (in)	0.52
Glass Diameter (mm)	5.5	MOL (mm)	18.30	LCL (mm)	13.21
Volts	2.5	MSCP ^‡	0.2	Avg Life Hrs	500
Watts	0.5	Amps	0.20	RoHS Compliant
E-Marked	No	Drawing		New Announcement

† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271029738
