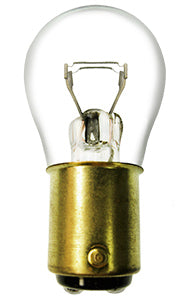

CEC Miniature Lamp #1692, Box of 10

CEC Miniature Lamp #1692, Box of 10

We are an authorized online retailer of the CEC Industries branded products.

  • $ 23.87
    Unit price per
Shipping calculated at checkout.

Only 1 left!

Part # 1692
Description S-8 D.C. BA15d 28V .61A 15CP
Bulb Shape S-8 Filament 2C-6 Base Style D.C. Bayonet (BA15d)
Glass Diameter (in) 1.04 MOL (in) 2.000 LCL†† (in) 1.25
Glass Diameter (mm) 26.5 MOL (mm) 50.80 LCL (mm) 31.75
Volts 28 MSCP  15 Avg Life Hrs 1000
Watts 17.08 Amps 0.61 RoHS Compliant Yes
E-Marked No Drawing 1692.pdf New Announcement

† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271022654
