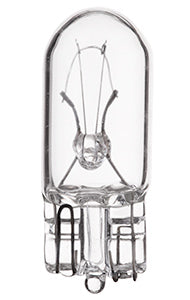

CEC Miniature Lamp #168LL, Box of 10
Part # | 168LL | |||||
---|---|---|---|---|---|---|
Description | T-3 1/4 WEDGE (W2.1X9.2d) 14V .35A 3CP LONG LIFE | |||||
Bulb Shape | T-3 1/4 | Filament | C-2F | Base Style | Wedge (T-3 1/4) | |
Glass Diameter (in) | 0.406 | MOL† (in) | 1.060 | LCL†† (in) | 0.56 | |
Glass Diameter (mm) | 10.3 | MOL (mm) | 26.80 | LCL (mm) | 14.20 | |
Volts | 14 | MSCP ‡ | 3 | Avg Life Hrs | 3000 | |
Watts | 4.9 | Amps | 0.35 | RoHS Compliant | Yes | |
E-Marked | No | Drawing | 168LL.pdf | New Announcement | 168LL.pdf |
† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
UPC: 014271044601
