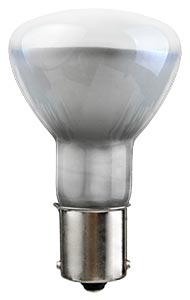

CEC Miniature Lamp #1383, Box of 10
We are an authorized online retailer of the CEC Industries branded products.
| Part # |
1383 |
| Description |
R12 SC BAY 13.0V 1.5A FROSTED |
| Bulb Shape |
R-12 |
Filament |
C-8 |
Base Style |
S.C. Bayonet (BA15s) |
| Glass Diameter (in) |
1.50 |
MOL† (in) |
2.63 |
LCL†† (in) |
2.34 |
| Glass Diameter (mm) |
38 |
MOL (mm) |
66.80 |
LCL (mm) |
59.40 |
| Volts |
13 |
MSCP ‡
|
0 |
Avg Life Hrs |
300 |
| Watts |
19.5 |
Amps |
1.50 |
RoHS Compliant |
Yes |
| E-Marked |
No |
Drawing |
|
New Announcement |
- † MOL (Maximum Overall Length):
- The overall length of a lamp, from the top of the shell to the bottom of the base.
- ‡ MSCP (Mean Spherical Candlepower):
- Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
- †† LCL (Light Center Lenght):
- The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
