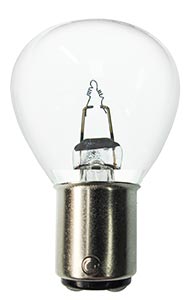

CEC Miniature Lamp #1196, Box of 10
| Part # | 1196 | |||||
|---|---|---|---|---|---|---|
| Description | RP11 DC BAY 12.5V 3.0A 50CP | |||||
| Bulb Shape | RP-11 | Filament | C-2V | Base Style | D.C. Bayonet (BA15d) | |
| Glass Diameter (in) | 1.38 | MOL† (in) | 2.250 | LCL†† (in) | 1.25 | |
| Glass Diameter (mm) | 35 | MOL (mm) | 57.15 | LCL (mm) | 31.75 | |
| Volts | 12.5 | MSCP ‡ | 50 | Avg Life Hrs | 300 | |
| Watts | 37.5 | Amps | 3 | RoHS Compliant | Yes | |
| E-Marked | No | Drawing |  1196.pdf |
New Announcement | ||
† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
UPC: 014271022258
