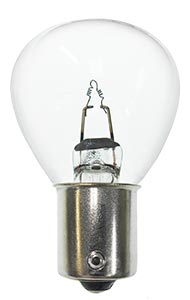

CEC Miniature Lamp #1195, Box of 10
|Description||RP11 SC BAY 12.5V 3.0A 50CP|
|Bulb Shape||RP-11||Filament||C-2V||Base Style||S.C. Bayonet (BA15s)|
|Glass Diameter (in)||1.38||MOL† (in)||2.250||LCL†† (in)||1.25|
|Glass Diameter (mm)||35||MOL (mm)||57.15||LCL (mm)||31.75|
|Volts||12.5||MSCP ‡||50||Avg Life Hrs||300|
† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
