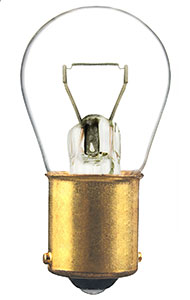

CEC Miniature Lamp #1141, Box of 10

We are an authorized online retailer of the CEC Industries branded products.

$ 9.45
Unit price per

Shipping calculated at checkout.

Quantity

Only 0 left!

Will be in stock after

Part #	1141
Description	S8 SC BA15s 12.8V 1.44A 21CP
Bulb Shape	S-8	Filament	C-6	Base Style	S.C. Bayonet (BA15s)
Glass Diameter (in)	1.04	MOL^† (in)	2.000	LCL^†† (in)	1.25
Glass Diameter (mm)	26.5	MOL (mm)	50.80	LCL (mm)	31.75
Volts	12.8	MSCP ^‡	21	Avg Life Hrs	1000
Watts	18.4	Amps	1.44	RoHS Compliant	Yes
E-Marked	No	Drawing	1141.pdf	New Announcement

† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271021992
