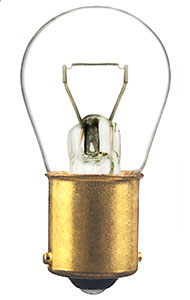

CEC Miniature Lamp #1129, Box of 10
| Part # | 1129 | |||||
|---|---|---|---|---|---|---|
| Description | S8 SC BAY 6.4V 2.63A 21CP | |||||
| Bulb Shape | S-8 | Filament | C-6 | Base Style | S.C. Bayonet (BA15s) | |
| Glass Diameter (in) | 1.04 | MOL† (in) | 2.000 | LCL†† (in) | 1.25 | |
| Glass Diameter (mm) | 26.5 | MOL (mm) | 50.80 | LCL (mm) | 31.75 | |
| Volts | 6.4 | MSCP ‡ | 21 | Avg Life Hrs | 200 | |
| Watts | 16.832 | Amps | 2.63 | RoHS Compliant | Yes | |
| E-Marked | No | Drawing |  1129.pdf |
New Announcement | ||
† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
UPC: 014271021992
