CEC Electronic Lighting Control Module #ELM449
|Description||12.8V 2.1A 8 TERMINAL LIGHTING MODULE, LED ONLY|
|Type||LED Compatible Lighting Module|
|Typical Load||No. 1156 2.10 Amps. at 12.8 Volts|
|Specifications||FMVSS108, SAE J1054 & J1690|
|Terminals||8||Rated Load Range||LED only. 1 to 6 10W Lamps||Flash Rate||60 to 120 Volts D.C.|
|Style||Square Plastic||Rated Voltage||11 to 15 Volts D.C.||Lamps Turn||2|
|Pilot Circuit||No||Wattage||162W||Life Hours||1000 Hours|

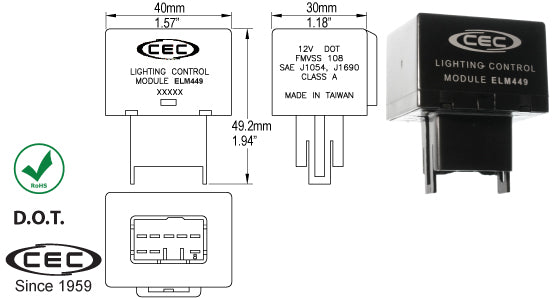

|Drawing Details||New Announcement|
† MOL (Maximum Overall Length):The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
