CEC LED Electronic Flasher #EF34L
| Part # | EF34L | |||||
|---|---|---|---|---|---|---|
| Description | 12V 12A 3PIN LED ELECTRONIC FLASHER | |||||
| Type | Fixed Load LED & Incandescent Compatible Flasher | |||||
| Typical Load | SAE No. 1156 2.10 Amps at 12.8 Volts SAE No. 1895 0.27 Amps at 14 Volts 2 Lamps for TS & 6 Lamps for Hazard or 2 LED Lamps in Any Combination At 15 Amps Total | |||||
| Specifications | FMVSS108, SAE J590b J945 & J1690 | |||||
| Terminals | 3 | Rated Load Range | 20mA to 15 Amps | Flash Rate | 60 to 120 Flash Per Minute | |
| Style | Square Plastic | Rated Voltage | 11 to 15 Votls D.C. | Lamps Turn | 2 | |
| Pilot Circuit | Yes | Wattage | 162W | Life Hours | 600 Hours | |

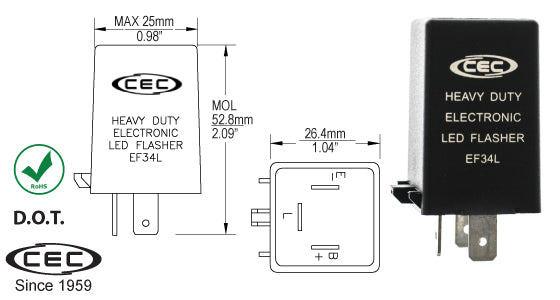

| Drawing Details | New Announcement | |||||
† MOL (Maximum Overall Length):The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
UPC: 014271044038
