CEC LED Electronic Flasher #EF32RL
|Description||12V 0.10-20A 2PIN LED ELECTRONIC FLASHER|
|Type||Variable Load LED/Incandescent Compatible Flasher|
|Typical Load||SAE No. 1156 2.10 Amps at 12.8 Volts SAE No. 1895 0.27 Amps at 14 Volts 1 to 12 Lamps or 2 LED Lamps In Any Combination at 25 Amps Total|
|Specifications||FMVSS108, SAE J590b J945 & J1690|
|Terminals||2||Rated Load Range||0.1A to 25A Self-Adjusting to Lamp Draw||Flash Rate||60 to 120 Volts D.C.|
|Style||Round Plastic||Rated Voltage||11 to 15 Volts D.C.||Lamps Turn||N/A|
|Pilot Circuit||No||Wattage||300W||Life Hours||600 Hours|

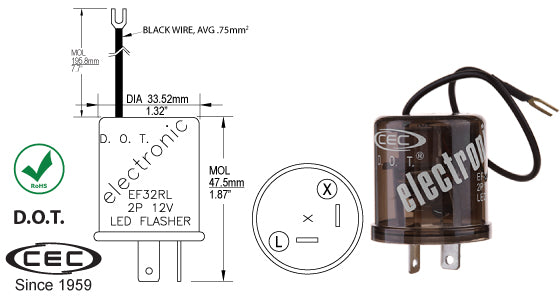

|Drawing Details||New Announcement|
† MOL (Maximum Overall Length):The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
