CEC Halogen Bulb #HS1 35/35W - AutoCareParts.com

CEC Halogen Bulb #HS1 35/35W

We are an authorized online retailer of the CEC Industries branded products.

  • $ 11.99
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

Part # HS1 35/35W
Description T4 1/2 12V 35W PX43t HALOGEN
Bulb Shape T4 5/8 Filament C-8/C-8 Base Style PX43t
Glass Diameter .67in/ 17.02mm Lumens 825 High/ 525 Low Base Material Metal
Design Wattage 35 High/ 35 Low MSCP  66 High/ 42 Low RoHS Compliant Yes
Design Voltage 12 MOL  3.62in/ 91.95mm Rated Avg Life Hrs 100 High/ 200 Low
Design Amps 2.92 High/ 2.92 Low LCL †† 1.12in/ 28.44mm Headlight Socket

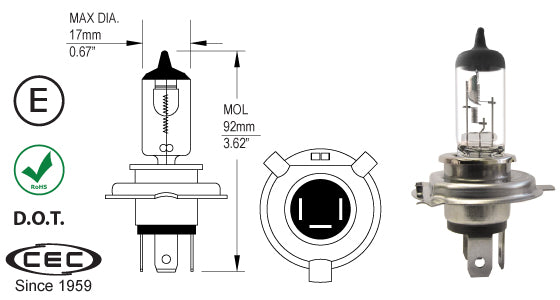

E-Mark Yes Drawing Details Announcement Sheet


† MOL (Maximum Overall Length):The overall length of a lamp, from the top of the shell to the bottom of the base.

‡ MSCP (Mean Spherical Candlepower):Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.

†† LCL (Light Center Lenght):The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271038013
