CEC LED Electronic Flasher #EF29L
|Description||12V 12A 4PIN LED FLASHER|
|Type||Combination TS & Hazard LED Compatible Flasher|
|Typical Load||SAE No. 1156 2.10 Amps at 12.8 Volts SAE No. 1895 0.27 Amps at 14.0 Volts 3 Lamps for TS & 6 Lamps for Hazard or 2 LED Lamps in Any Combination|
|Specifications||FMVSS108, SAE J590b J945 & J1690|
|Terminals||4||Rated Load Range||20mA to 15 Amps||Flash Rate||60 to 120 Flash Per Minute|
|Style||Square Plastic||Rated Voltage||11 to 15 Volts D.C.||Lamps Turn||2|
|Pilot Circuit||Yes||Wattage||162W||Life Hours||400 Hours|

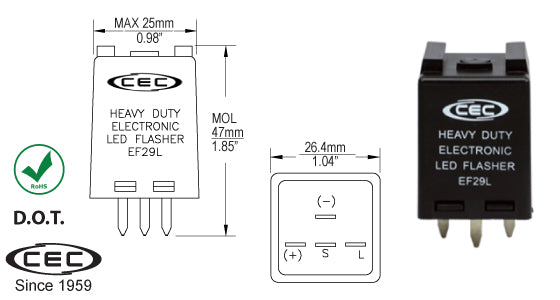

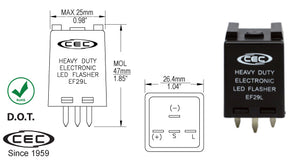

|Drawing Details||New Announcement|
† MOL (Maximum Overall Length):The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
