CEC Electronic Flasher #EF27
|Description||12V 12A 5PIN ELECTRONIC FLASHER|
|Type||Combination TS & Hazard Electronic Flasher|
|Typical Load||SAE No. 1156 2.10 Amps at 12.8 Volts SAE No. 1895 0.27 Amps at 14.0 Volts 2 Lamps for TS & 6 Lamps for Hazard|
|Specifications||FMVSS108, SAE J590b J945 & J1690|
|Terminals||5||Rated Load Range||0.27 Amps to 12 Amps||Flash Rate||60 to 120 Flash Per Minute|
|Style||Square Plastic||Rated Voltage||11 to 15 Volts D.C.||Lamps Turn||2|
|Pilot Circuit||Yes||Wattage||162W||Life Hours||600 Hours|

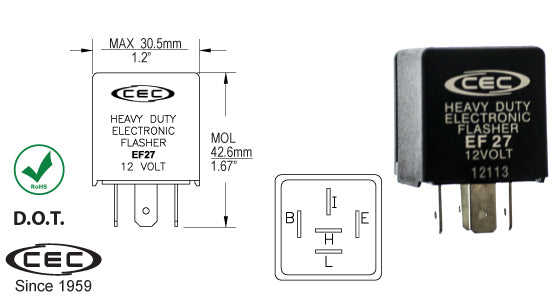

|Drawing Details||New Announcement|
† MOL (Maximum Overall Length):The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
