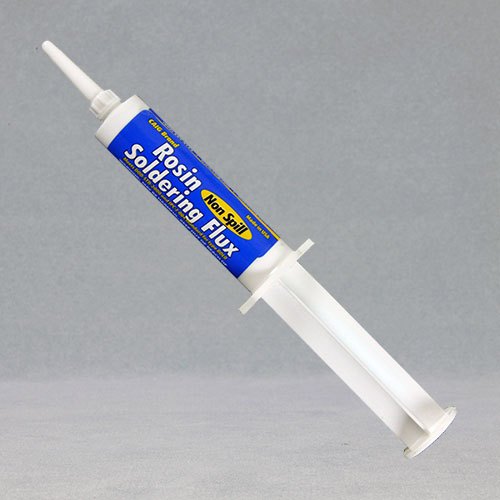

CAIG Rosin Soldering Flux with Syringe Applicator, #RSF-R80-8G, 8 g

We are an authorized online retailer of the CAIG Laboratories branded products.

  • $ 11.99
    Unit price per
Shipping calculated at checkout.

Only 16 left!

CAIG Rosin Soldering Flux, TYPE RSF-R80

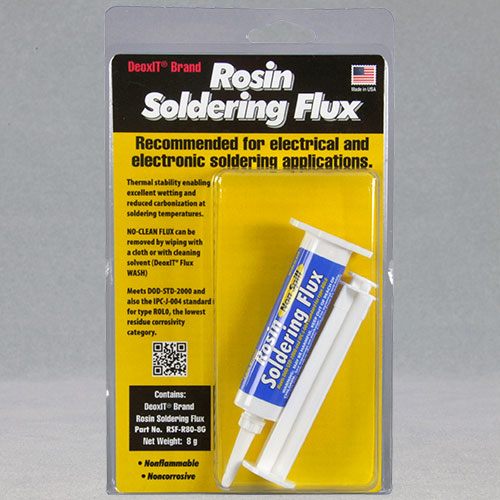

Part No. RSF-R80-8G:
Syringe, 8 grams

Applicator: Syringe.
Formulation: WW Gum Rosin, Diethyene Glycol Dibutyl, Dymerex Rosin.
Use: Electrical soldering

Notes: General purpose flux for soldering electrical connections. Use CAIG NO-CLEAN Soldering Flux, TYPE RSF-R39 for precision soldering.


KEY FEATURES:

  • RSF Rosin Flux is a mildly-activated rosin flux that is considerably more active than water-white rosin
  • Activity closely approaches that of fully activated rosins
  • Conforms to all of the requirements of Type RMA
  • Rosin Core, Mildly Activated of Federal Specification QQ-S-571
  • The RSF paste ux meets DOD-STD-2000 & also the IPC-J-004 standard for type ROL0, the lowest residue corrosivity category
  • Thermal stability enabling excellent wetting and reduced
    carbonization at soldering temperatures

 BRIEF SPECS:

  • Softening Point: 160 F (71 C)
  • Rosin Grade: WW per Fed. Spec. LLL-R-626
  • Acid No. (of Rosin): 150
  • Water Extract Resisitivity: 110,000 ohm-cm
  • Effect on Copper Mirror: None
  • Fungus Resistance Per MIL-E-5272
  • Nonflammable, noncorrosive.

UPC: 697429014093
