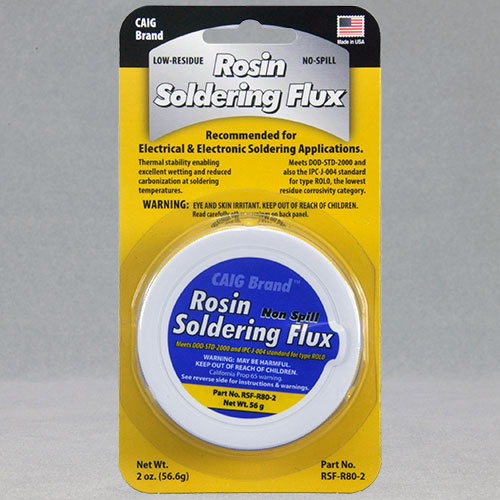

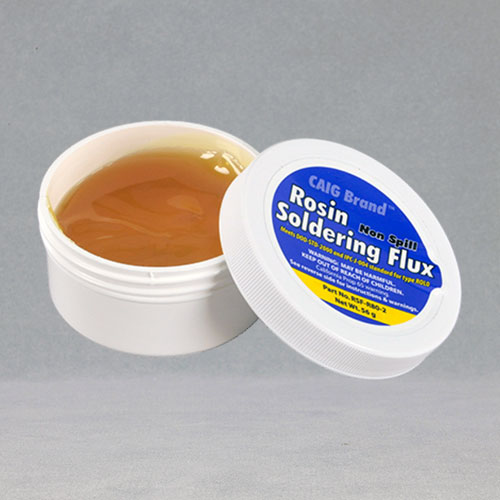

CAIG Rosin Flux, #RSF-R80-2, 56g Jar

We are an authorized online retailer of the CAIG Laboratories branded products.

  • $ 11.53
    Unit price per
Shipping calculated at checkout.


Only 16 left!

CAIG Rosin Soldering Flux, TYPE RSF-R80

Part No. RSF-R80-2:
Jar, 56 grams

Applicator: Jar
Formulation: WW Gum Rosin, Diethyene Glycol Dibutyl, Dymerex Rosin.
Use: Electrical soldering
Notes: General purpose flux for soldering electrical connections. Use CAIG NO-CLEAN Soldering Flux, TYPE RSF-R39 for precision soldering.

KEY FEATURES:
RSF Rosin Flux is a mildly-activated rosin flux that is considerably more active than water-white rosin
Activity closely approaches that of fully activated rosins
Conforms to all of the requirements of Type RMA
Rosin Core, Mildly Activated of Federal Specification QQ-S-571
The RSF paste ux meets DOD-STD-2000 & also the IPC-J-004 standard for type ROL0, the lowest residue corrosivity category
Thermal stability enabling excellent wetting and reduced
carbonization at soldering temperatures

BRIEF SPECS:
Softening Point: 160 F (71 C)
Rosin Grade: WW per Fed. Spec. LLL-R-626
Acid No. (of Rosin): 150
Water Extract Resisitivity: 110,000 ohm-cm
Effect on Copper Mirror: None
Fungus Resistance Per MIL-E-5272
Nonflammable, noncorrosive.

        UPC: 697429014062
